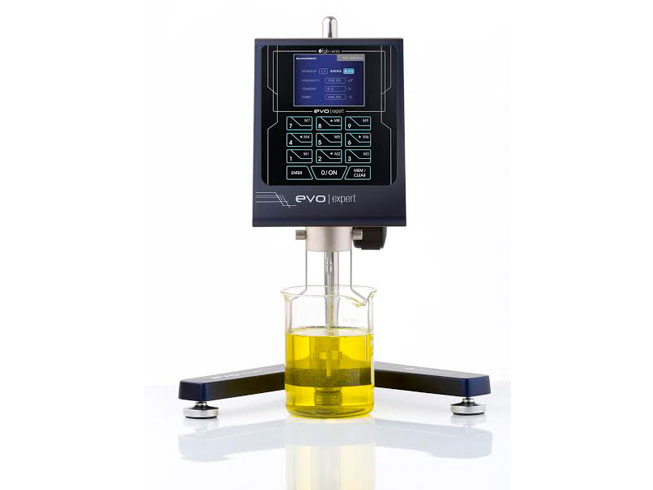

Fungilab Evo Series for advance performance and multifuctional viscosity measurements
• New features for your viscosity measurements with the new Evo Series : Colour TFT screen, for easy readings and fast data recognition
• New intuitive Full Touch key pad : select your data in one touch
• Light-up Led : unit guides you to the proper functionality
• New USB connection : Type A 2.0 generation for downloading data to your PC
• Wi-Fi : integrated in system for easy control and access to your measurements
• Optional : FSP System
Main Features
Data displayed
Selected speed r.p.m., Selected spindle SP
Viscosity reading cP (mPa·s) or cSt, Percentage of full scale %
Sample temperature oC or oF, Shear Rate (with coaxial spindles) SR (s – 1)
Shear Stress (with coaxial spindles) SS (N/m2), Density (introduced by the user) g/cm3
Viscosity reading
Dynamic viscosity (cP or mPa·s) or kinematics viscosity (cSt).
Unit converter SI to CGS.
Program Features
Time to torque & Time to stop, 9 Working Memories, Customizable speed options, Multistep, Ramp
AUTO-TEST
Automatic internal viscometer checking
AUTO-RANGE
Full scale range for combination spindle speed.
Temperature reading by PT100.
User-enabled viscosity and temperature calibration.
10 language options.
| Code |
Model |
Measuring Range (cP) |
Speed (RPM) |
Number of Speed |
| VE300003 |
EVO EXPERT L |
20-6.000.000 |
0.01-200 |
54 |
| VE300002 |
EVO EXPERT R |
100-40.000.000 |
0.01-200 |
54 |
| VE300001 |
EVO EXPERT H |
200-106.000.000 |
0.01-200 |
54 |
| VE400003 |
EVO PREMIUM L |
20-6.000.000 |
0.01-250 |
2600 |
| VE400003 |
EVO PREMIUM R |
100-40.000.000 |
0.01-250 |
2600 |
| VE400003 |
EVO PREMIUM H |
200-106.000.000 |
0.01-250 |
2600 |
