Dynamic viscosity (cP or mPa·s) or kinematics viscosity (cSt).
Program
Create and edit multiple programs Store programs for later use Choose between Time to Torque (TTT), Time to Stop (TTS), Step and Ramp
Customisation
Create list of customised speed (0.01 to 250rpm), Activate / deactivate Quality Control Limits (QCL) and Out of range alarms, Users can change the axis values on the graphic display
AUTO-TEST :
Automatic viscometer calibration with sound and visual malfunction alarm
AUTO-RANGE :
Displays the maximum viscosity range for the selected spindle / RPM combination
Languages :
Multiple Language selections are available
QCL
Select the quality control limits for sample analysis
I.A.M
Measurement update rate regulated through the selection of the different times in each experiment
Graphic Mode
Displays experiment data with real time charts
Calibration
User-enabled viscosity and temperature calibration
Offset
Adjust the temperature through an offset
Heldal

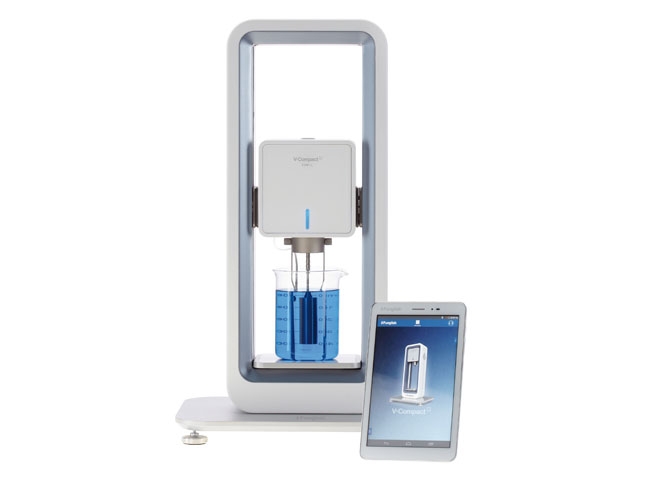

Helicoidal movement incorporated into the V-Compact viscometer for the viscosity measurement of non-flowing substances.
PPR
The V-Compact includes a Push, Plug and Release (PPR) system for Quick and efficient spindle changes
Accessories
The V-Compact is compatible with a small sample adaptor (APM) and Low viscosity adaptor (LCP)
Code
Model
Measuring Range (cP)
Speed (RPM)
VC101003
V-COMPACT L
1*-6.000.000
0.01-250
VC101002
V-COMPACT R
25**-40.000.000
0.01-250
VC101001
V-COMPACT H
200***-106.000.000
0.01-250
*Viscosity range referenced from 0.1 to 200 RPM with LCP accessory. Without LCP the Lowest viscosity measured is 15cP.
** Using the R-1 spindle at 60RPM (faster speeds may create turbulences in the sample)
