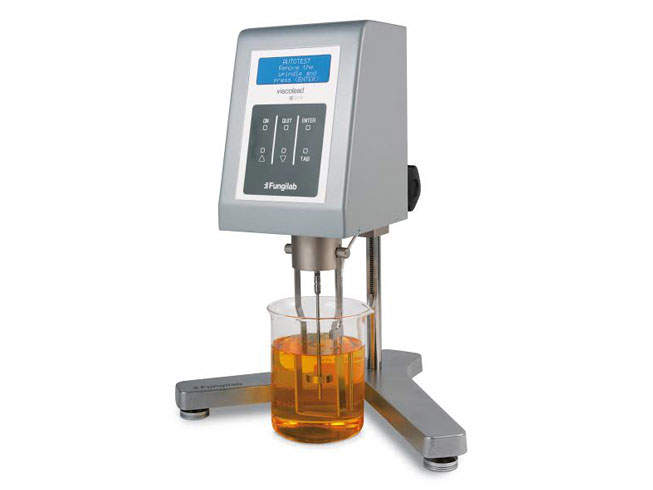

Viscolead Pro

Viscolead Pro

  • Catlog No.:
  • Make:
  • Download Brochure:
  • Usage:

Standard Features

Program features
Time to torque, Time to Stop, 10 working memories, Customizable option (Speeds), Programmable : Multistep / Ramp Unit Converter (IS or CGS)
USB Interface
Faster transfer data to the computer
Auto-Test
It checks the internal function in order to make the unit ready to use
Viscosity Readings
Absolute viscosity (cP or mPa·s), Apparent viscosity (cP or mPa·s),
Kinematic viscosity (cSt, mm2/sec) (Density introduced by the user)
10 Working Memories
Set up the unit and get it ready to be used every day choosing the memory you need
Data Displayed
Selected Speed, Selected Spindle, Viscosity readings (cP or mPa·s or cSt), Percentage of Full Scale Range (%), Sample Temperature (°C or °F), Shear rate (with coaxial spindles) (s-1), Shear Stress (with coaxial spindles) (N/m2), Density (introduced by the user) (g/cm3)
Universal adapter
All accessories such as Brookfield
Datalogger Software included
USB allows data transfer to Excel format
Code Model Measuring Range (cP) Speed (RPM) Number of Speed
V400003 VISCOLEAD PRO L 20-6.000.000 0.01-200 54
V400002 VISCOLEAD PRO R 100-40.000.000 0.01-200 54
V400001 VISCOLEAD PRO H 200-106.000.000 0.01-200 54
